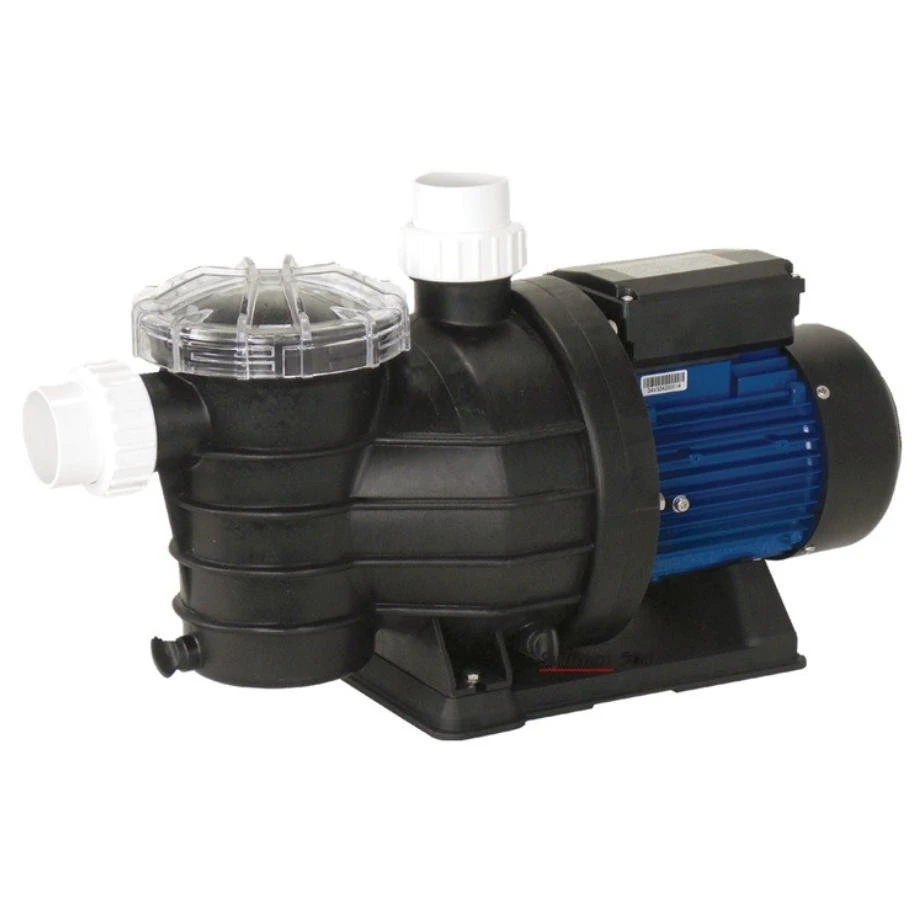

SWIMM 500 Surface Swimming Pool Pump

SWIMM 500 Surface Swimming Pool Pump

The Swimm range offers unobtrusive pumping of chlorinated water and dirty water containing small, non-abrasive, solids in suspension. They have thermoplastic pump bodies and impellers, 304 stainless steel shafts, with silicon carbide and NBR mechanical seals.
They can pump water temperatures from + 5OC to + 35OC. Motor protection is rated at IP55. The design features translucent inspection covers and removable filter baskets for trapping debris.

• Domestic
• Commercial
• Private pools
• Public pools
• Water features
• Ponds

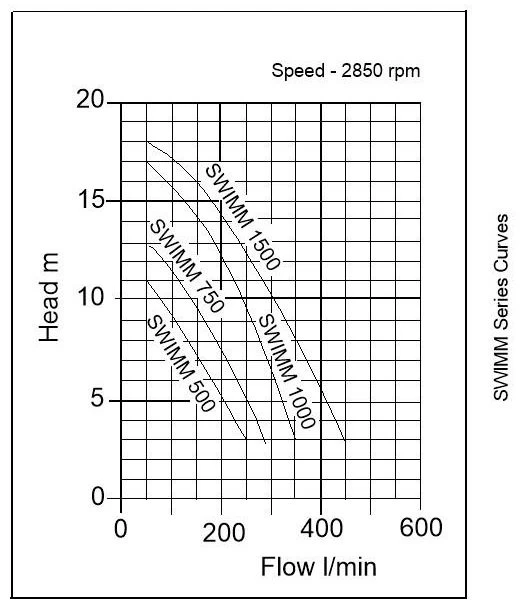

Specification

Model	Inlet ABS (mm)	Outlet ABS (mm)	kW	Volt	Flow (l/min)	Head (m)	w x l x h (mm)	dry weight (Kg)
Swimm 500	48.3	48.3	0.37	230	250	11	160x465x234	8.10
Swimm 750	48.3	48.3	0.55	230	275	13	220x502x270	9.50
Swimm 1000	48.3	48.3	0.75	230	350	17	220x502x270	11.30
Swimm 1500	60.4	60.4	1.10	230	450	18	238x520x331	14.90



Delivery

All our swimming pool Pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
