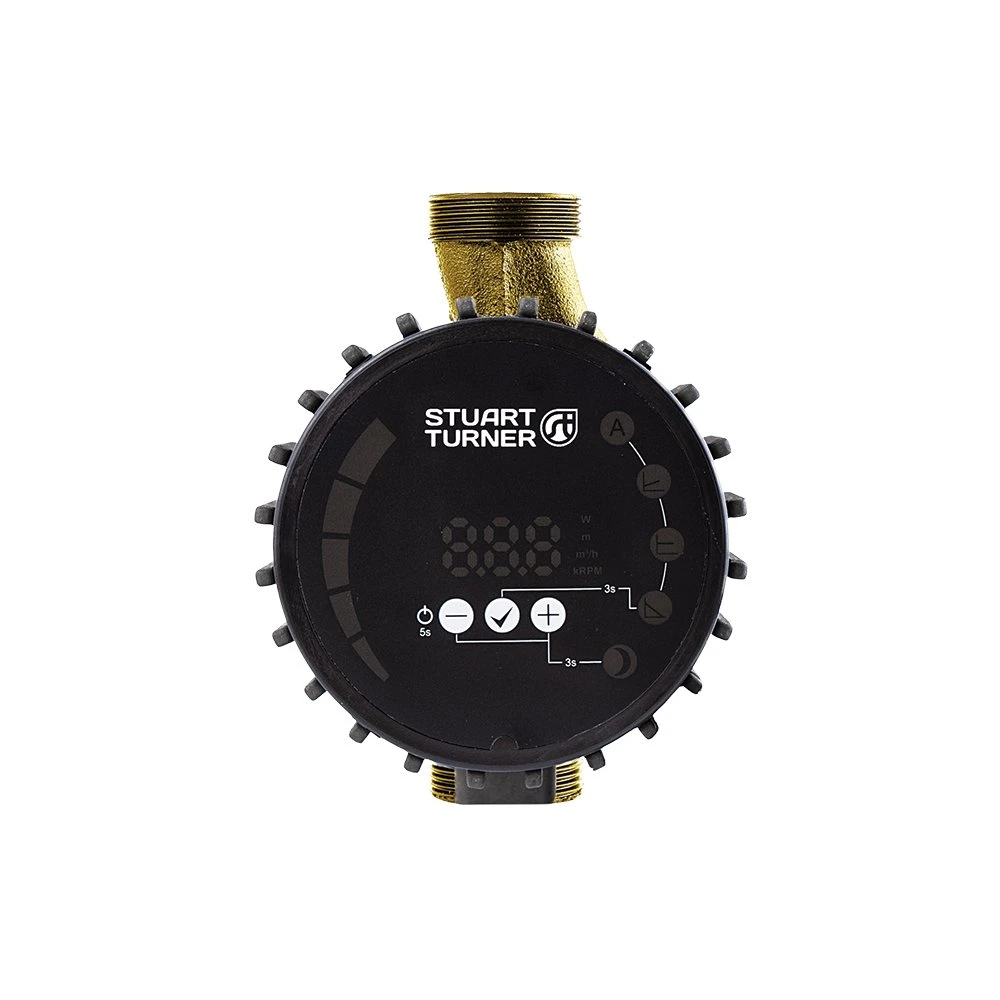

Stuart Turner Pulse Bronze Single B 32/80-180

Stuart Turner Pulse Bronze Single B 32/80-180

Stuart Pulse Bronze Circulators feature a robust bronze pump housing and are ideal for the transfer of liquid within systems for hot-water heating, air-conditioning and ventilation.

These circulators feature variable speed controls to constantly measure pressure and flow and adjust the speed according to the set  operating mode.

Utilising the very latest technology including integrated diagnostics and carbon bearings making them highly efficient and robust.



Features:

• Automatic, proportional pressure, constant pressure and constant speed operating modes
• Automatic night operation mode
• ECM permanent magnet technology
• Automatic venting cycle
• Robust bronze pump housing
• Continuously rated
• Carbon bearings
• 180 mm fitted length
• G 2 union connections
• ErP compliant
• Built-in over-current, temperature and over-voltage protection
• LED display control panel
• 2-year warranty



Digital operating modes

Automatic Mode

The pump automatically sets the operating pressure, depending on the hydraulic system. By doing so, the pump finds its optimal operating position

Proportional Pressure

The pump maintains the pressure with relation to the current flow. The pressure is equal to the set pressure. In between, the pressure changes linearly relative to the flow.

Constant Pressure

The pump maintains the set pressure, from 0 flow to maximum power, where the pressure begins to drop.

Constant Speed

The pump operates and maintains the chosen speed

Night Mode

When operating in night mode, the pump automatically switches between the current mode and night mode. Switching occurs based on the temperature of the medium. If the pump sense a drop in temperature of the medium (15-20° C – in a 2-hour time frame) the pump switches to night mode. When the temperature of the medium rises, it will revert to previous operating modes.







Pulse Bronze Single – B 32/80-180 Specifications

Manufacturer	Stuart Turner
Manufacturer’s Warranty	2 years*
Pump Type	Centrifugal
Dimensions (l x w x h)	242 x 117 x 180 mm
Weight (including fittings)	3.85 kg
Max. Head – Closed Valve (metres)	8.4 m
Fitting Length	180 mm
Connections	G 2
Maxi Working Pressure	10 Bar
Max. ambient Air Temp. (continuous)	40 °C
Min. Water Temperature	-10 °C
Max. Water Temperature	110 °C
Power Supply	230 V a.c. / 1 / 50 Hz
Duty Rating	Continuous (S1)





Delivery

All our Booster pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.



• Product Code: STUT
• Brand: Stuart Turner
• Twin or Single: Single
