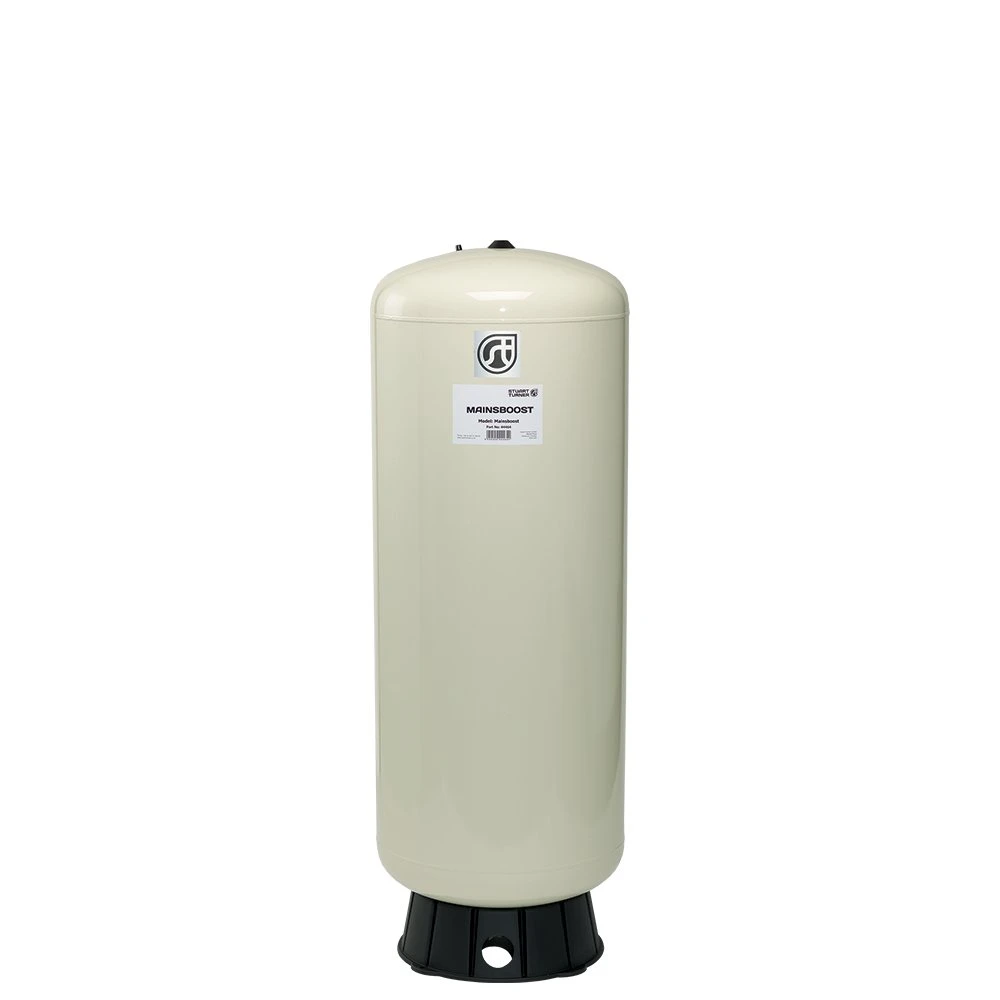

Stuart Turner Mainsboost MB 250SV-1-22

Mainsboost MB 250SV-1-22 – Mains Water Boosting System Vessel

Mainsboost products are a flexible solution assisting with unvented systems (mains pressure) where the incoming mains pressure to the property is low or intermittent. Ideally suited for boosting cold water mains supply to residential, commercial and industrial properties.

The MB 250SV-1-22 is designed for unvented cylinders and combination boilers where the mains pressure is greater than 2.0 bar, but the water flow is inadequate for the requirements.

Installed directly onto the incoming water supply and under mains pressure, the vessel fills with water, creating a state of pressure equilibrium within the chamber (as it’s surrounded by positive pre-charged air pressure sealed within the vessel, balancing them out). The Mainsboost system now has a volume of pressurised water ready for distribution throughout the property.

If greater demand is required, Mainsboost can be supplied with multiple vessel options.



Key Features

• Up to 80 litres/minute per vessel
• 1 x 250 litre pressure vessel
• Minimal maintenance
• Silent operation
• WRAS approved product
• Consumes no electricity
• Robust construction
• Long life butyl diaphragm
• Integral strainer
• Comprehensive ULK installation kit included
• Patent protected
• 5-year warranty

Options:-

• One, two or three vessel systems
• Mainsboost Charger pump for applications where the incoming mains water pressure is less than 2 bar (static pressure)
• Thermal Insulating jackets





MB 250SV-1-2 Specifications

No. of Vessels	One
Vessel Usable Capacity (Litres)	137.5
Dimensions (H x W x D) (mm)	1210 x 535 x 535
Empty Weight (kg) inc. fittings	41
Filled Weight (kg)	178
Max Weight (kg)	291
ULK Kit (mm)	22
WRAS Approved	Yes
Mounting	Floor
Min / Max Operating Temperature	Min 4 °C / Max 35 °C
Warranty	5 years





Delivery

All our Booster pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.



• Product Code: STUT
• Brand: Stuart Turner
• Colour: White
• Customer Offloading: Customer Offloading
• Delivery: Free Delivery
• Shape: Vertical
• Twin or Single: Single
• WRAS: Yes
