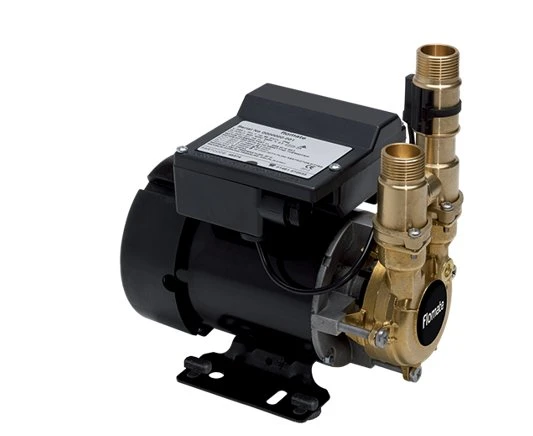

Stuart Turner Mainsboost Flomate – Pressure Booster Pump MBF 12

Mainsboost Flomate Pressure booster pump – MBF 12

Designed for properties with only one bathroom, this Mainsboost Flowmate MBF 12 pump can be connected directly to the incoming mains and will deliver an additional 1.5 bar pressure to the existing mains pressure.



Automatically starting when a flow rate of 0.6 Litres per minute or more exists.



Features:

• Suitable for properties typically with only one bathroom
• Compact size
• Boosts mains Pressure by additional 1.5 Bar
• Maximum output flow rate 12 l/min
• Quiet operation
• WRAS Approved
• Built-in bypass
• Automatic switching
• Robust brass construction
• Dry Run Protect
• Continuously rated
• 3 Year Warranty



Mainsboost Flowmate MBF 12 Specifications

Manufacturer	Stuart Turner
Manufacturer’s Warranty	3 years*
Pump Type	Peripheral
Dimensions (l x w x h)	210 x 130 x 231 mm
Weight (including fittings)	6 kg
Power Cable Length	1.5 m (pre-wired)
Typical Noise	48 dB (A)
Max. Head – Closed Valve (metres)	32 m
Max. Flow (Litres per minute)	12 L/min
Maxi Working Pressure	600 kPa (6 Bar)
Max. ambient Air Temp. (continuous)	40 °C
Min. Water Temperature	4 °C
Max. Water Temperature	23 °C
Power Supply	230 V a.c. / 1 / 50 Hz
Motor Type	Induction (auto-reset thermal trip)
Duty Rating	Continuous (S1)





Delivery

All our Booster pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.



• Product Code: STUT
• Brand: Stuart Turner
• Colour: Black
• Outlet Size: 3/4″ BSP Male
• Potable: Potable
• Twin or Single: Single
