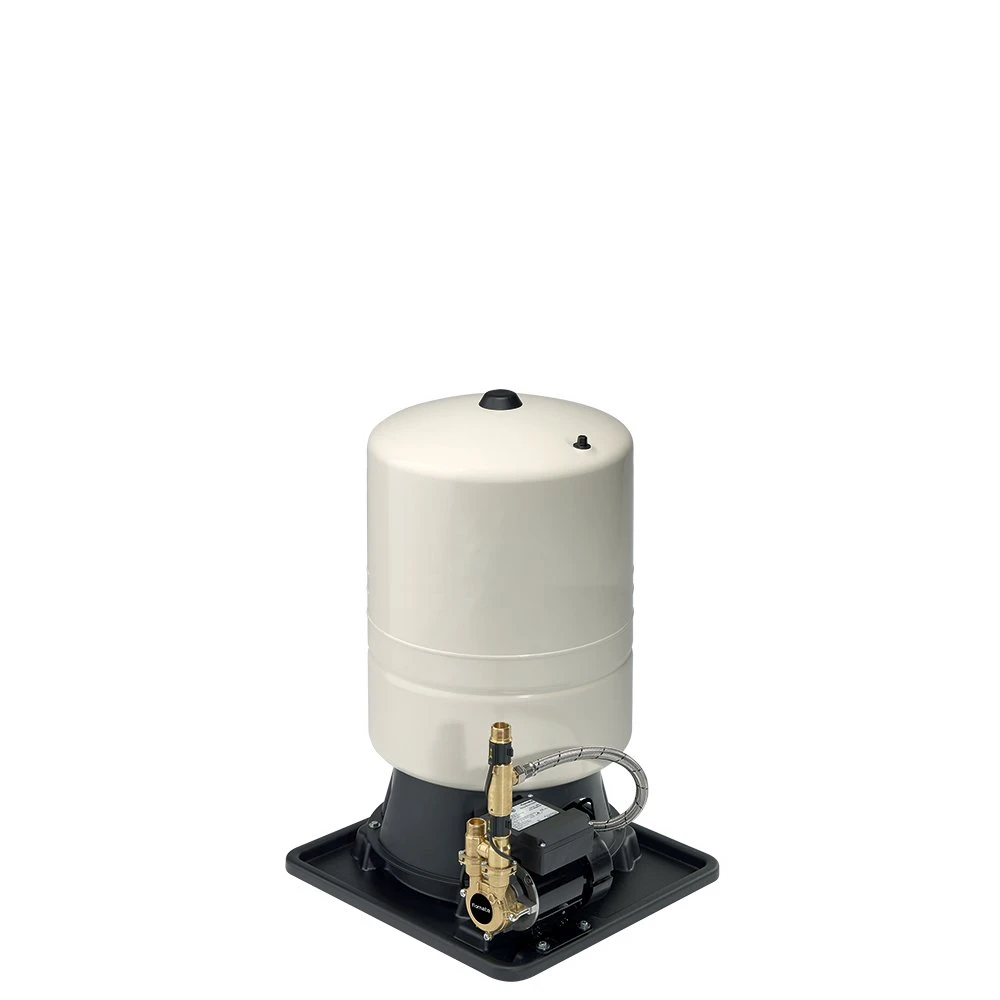

Stuart Turner Mainsboost Flomate – MBF 80-1-15

Mainsboost Flomate Pressure Booster Pump – MBF 80-1-15

Suitable for properties with only one bathroom, this Mainsboost Flowmate MBF 80-1-15 Booster system requires no on-site commissioning and fits neatly within a standard 50 mm kitchen base unit.

Mainsboost Flomate MBF 80 once connected directly onto the incoming mains, will deliver up to 16 litres/minute flow at 3.2 bar pressure to multiple outlets within the property.  The preset cut-in limit of the 60 litre pressure vessel,  will deliver 12 litres/minute until demand ends and the pressure vessel recharges.



Features:

• Suitable for properties typically with only one bathroom
• Increases mains water pressure up to 3.2 bar
• Output flow rate up to 16 l/min
• 60 litre pressure vessel
• Quiet operation
• WRAS Approved Product
• Built-in bypass
• Automatic switching
• Robust brass construction
• Dry Run Protect
• Continuously rated
• Patent Protected
• 3-Year Warranty



Mainsboost Flowmate MBF 80-1-15 Specifications

Manufacturer	Stuart Turner
Manufacturer’s Warranty	3 years*
Pump Type	Peripheral
Pressure Vessel Nominal Size	80 Litres
Pressure Vessel Usable Capacity	44 Litres
Dimensions (depth x width)	457 x 480 mm
Weight (including fittings)	24 kg
Power Cable Length	1.5 m (pre-wired)
Typical Noise	From 46 dB (A)
Max. Head – Closed Valve (metres)	32 m
Max. Flow (Litres per minute)	16 L/min
Max Working Pressure	450 kPa (4.5 Bar)
Max. ambient Air Temp. (continuous)	40 °C
Min. Water Temperature	4 °C
Max. Water Temperature	23 °C
Power Supply	230 V a.c. / 1 / 50 Hz
Motor Type	Induction (auto-reset thermal trip)
Duty Rating	Continuous (S1)





Delivery

All our Booster pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.



• Product Code: STUT
• Brand: Stuart Turner
• Outlet Size: 3/4″ BSP Male
• Potable: Potable
• Twin or Single: Single
