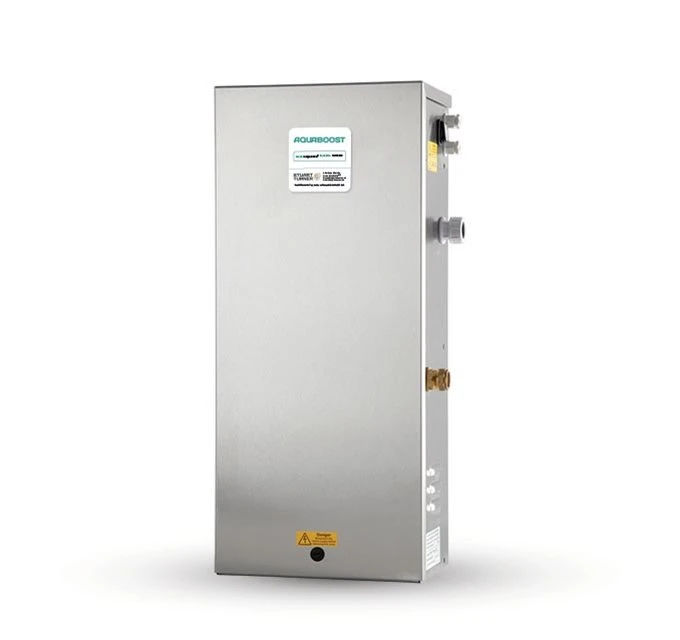

Stuart Turner CAT5 Aquabreak AB5

AB5 – CAT5 Aquabreak Unit

The Aquabreak is a complete, all-in-one unit, single outlet booster set incorporating single pump, pressure sensor, controller, control vessel, non-return valve and a 5 litre (nom) break tank fitted with a 1/2” solenoid valve and strainer. The electronic controller ensures that the pump starts automatically when water is consumed and stops automatically when the consumption ceases. In addition the controller protects the pump in case of faults.

All standard units are rated for CAT 3/4 fluids and are also available as a CAT 5 version making them suitable for use in high risk Category 5 fluid applications.



Features:

• 2 year warranty
• Type AB air gap
• Weir Overflow
• Durable Stainless steel enclosure IP54 (304 stainless steel)
• Boosts cold water mains supply to 4.5 bar, flow rates up to 12 l/min
• 5 litre (nominal) water storage capacity
• Quiet operation
• WRAS Approved Product
• High flow, low noise equilibrium fill valve
• Dry run protection

Applications

Boosting cold mains water pressure and flow in laboratories, stables, kennels, waste bin stores and wash down stations.

AB5 – CAT5 Aquabreak Unit Specifications

Manufacturer	Stuart Turner
Manufacturer’s Warranty	2 years*
Pump Type	Variable speed
Water Tank Nominal Size	5 Litres
Water Tank Usable Capacity	4 Litres
Dimensions (width x depth x height)	617 x 206x 700mm
Weight (including fittings)	12.5 kg
Power Cable Length	3 m (pre-wired)
Max. Head – Closed Valve (metres)	45 m
Max. Flow (Litres per minute)	12 L/min
Max. ambient Air Temp. (continuous)	35 °C
Power Supply	240 V / 1 Phase / 50 hz
Motor Type	Induction motor (auto-reset thermal trip)
Current – full load	1.7 amps





Delivery

All our Booster pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.



• Product Code: STUT
• Brand: Stuart Turner
• Twin or Single: Single
