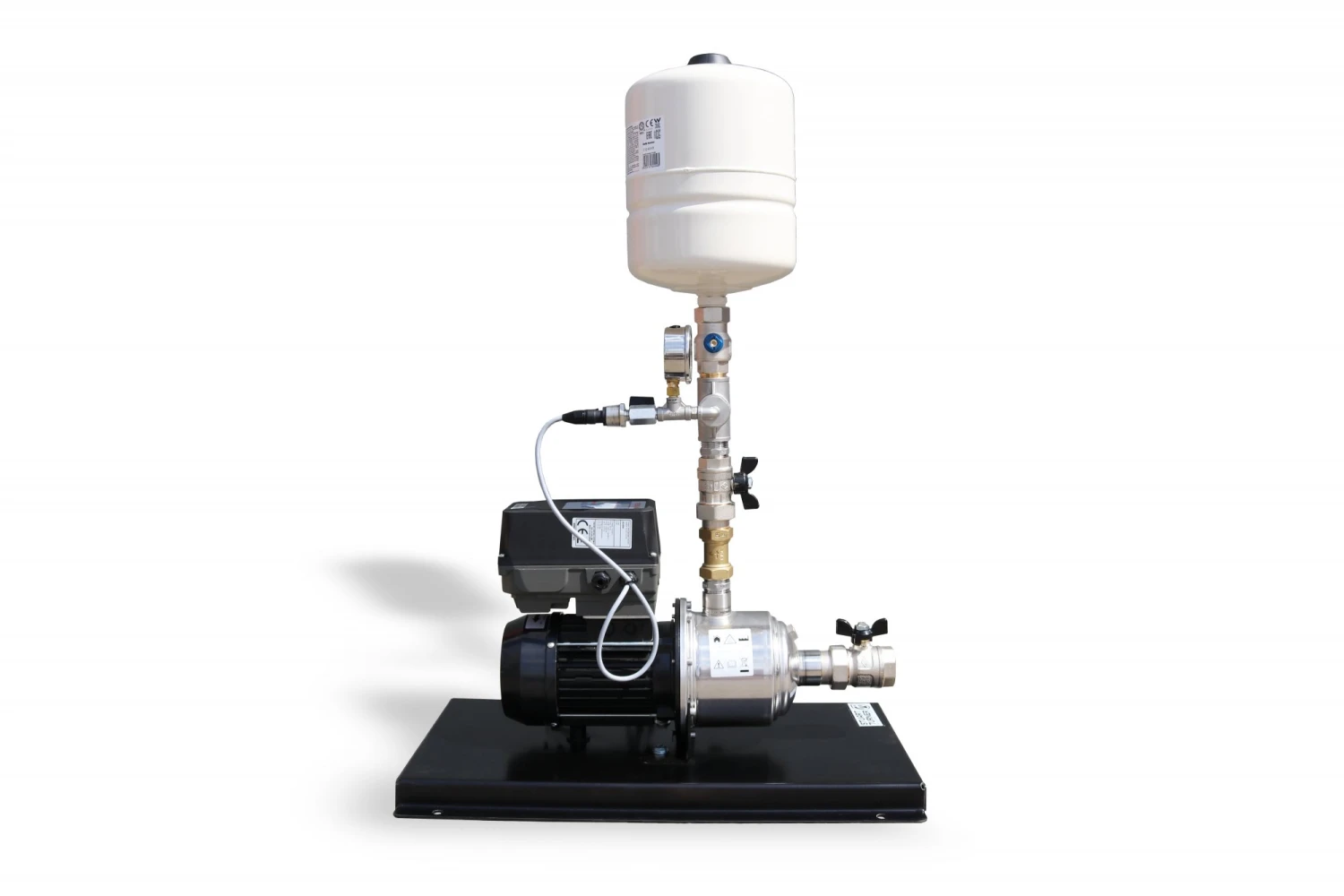

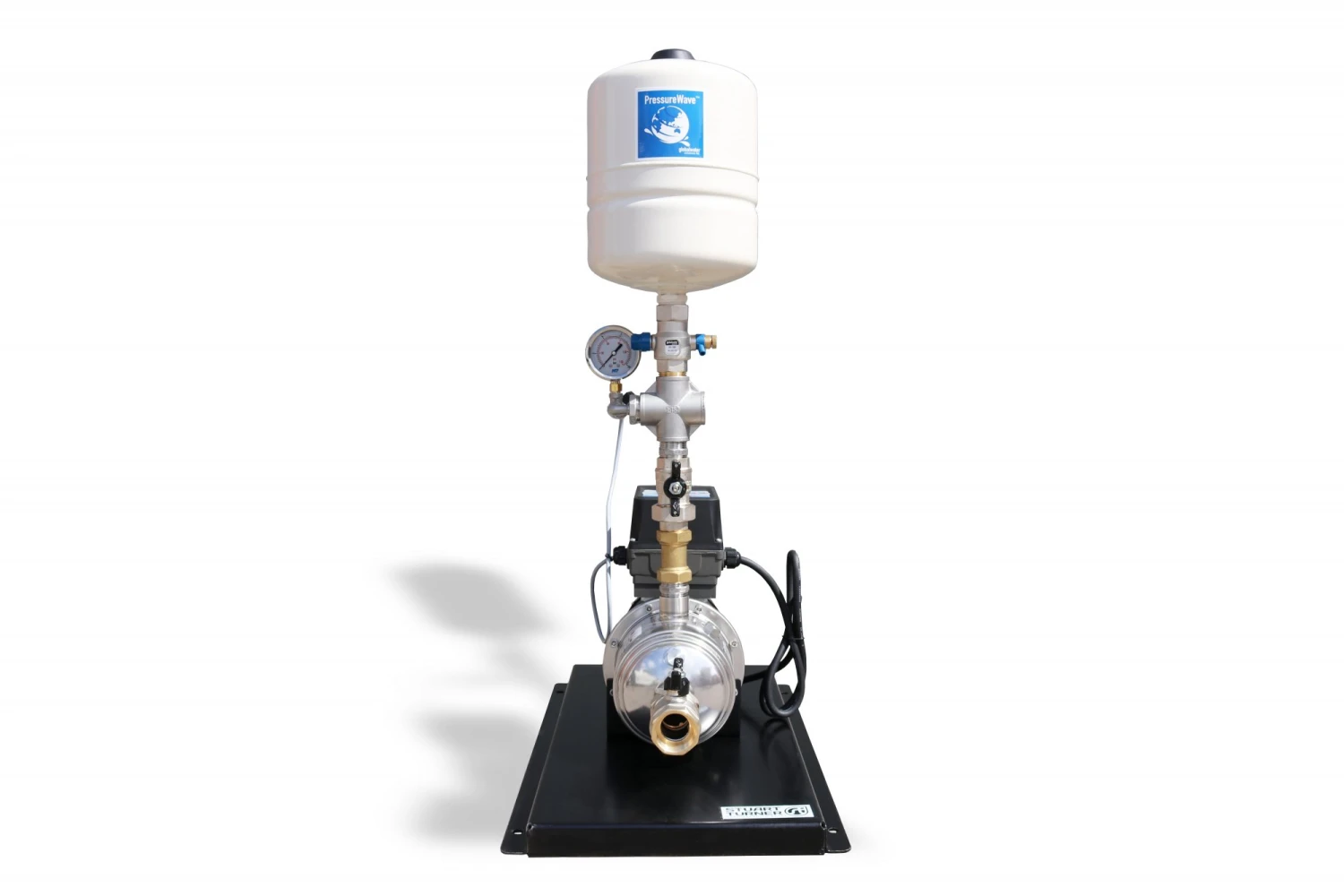

Stuart Turner Aquaboost IBolt Horizontal Single Booster Pump 0906 1H-CMT/8 130 L/MIN @ 5.4 BAR

Stuart Turner Aquaboost iBolt Horizontal single Booster Pump 0906 1H-CMT/8 130 L/MIN @ 5.4 BAR

Aquaboost iBolt range of singe pump 05 booster sets are capable of delivering flow rates up to 15.0m³/ hour and is capable of producing head pressures of up to 7.1 bar. Not only does the Aquaboost iBolt 03 range feature a horizontal multistage pump, it is also controlled by an air-cooled variable speed frequency invertor which is mounted direct onto the pump motor.

Ideal for cold water pressure and flow boosting in a range of domestic, commercial and industrail applications.

Key Features

• Flow rates up to 15.0 m3 /h
• Head pressure up to 7.1 bar
• Dry run protection
• 304 stainless steel pump
• Stainless steel / brass discharge fittings
• Nickel plated WRAS approved ball valves
• Air cooled inverter
• BMS volt free contacts
• Glycerine filled pressure gauge
• Brass non-return valve
• WRAS approved union ball valves
• WRAS approved 8 litre pressure vessel



iBolt 0906-1H-CMT/8 Technical Specifications

Manufacturer	Stuart Turner
Manufacturer’s Warranty	2 Years
Pump Type	Centrifugal Multistage
Pump Control	Variable Speed (via Pressure Transducer)
Inlet	1 1/2″
Outlet	1 1/4″

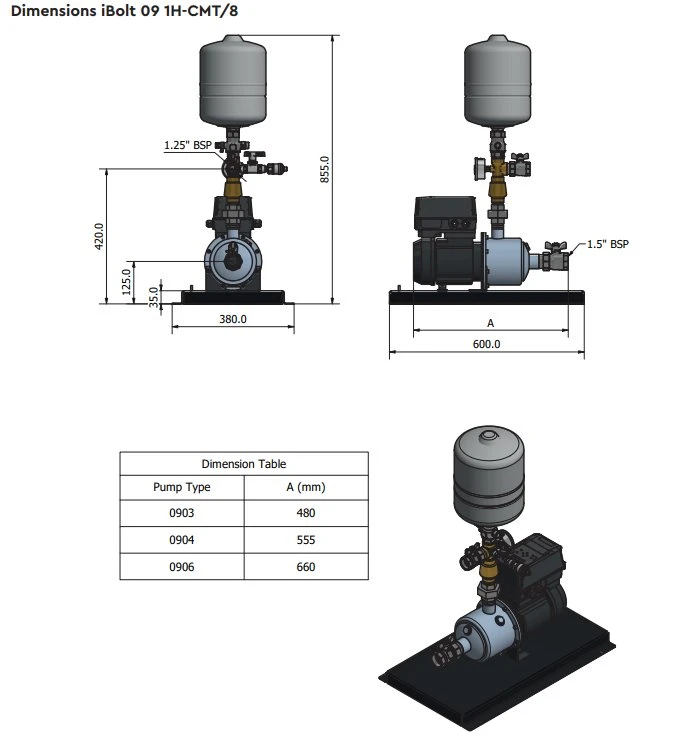

Dimensions (l x w x h)	600 x 380 x 855 mm
Weight	36 Kg
Typical Noise	< 70 dB (A)
Nominal Head	5.0 bar
Max. Head – Closed Valve (metres)	7.1 bar
Nominal Flow Rate	9.0 m³/ h
Max. Flow (Litres per hour)	15.0 m³/ h
Pressure Vessel	8 Litres
Max. ambient Air Temp	40 °C
Power Supply	230 V a.c / 1 / 50 Hz
Current Load	8.7 Amps
Motor Type	Induction (current overload sensor)
Duty Rating	Continuous





Delivery

All our Booster pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.

Tanks Direct also supply variable domestic & commercial twin and triple pumps, please contact us on 01643 703358.

• Product Code: ST
• Delivery: Free Delivery
• Twin or Single: Single
