15,000 litre GRAF Platin Indriect Rainwater Harvesting System

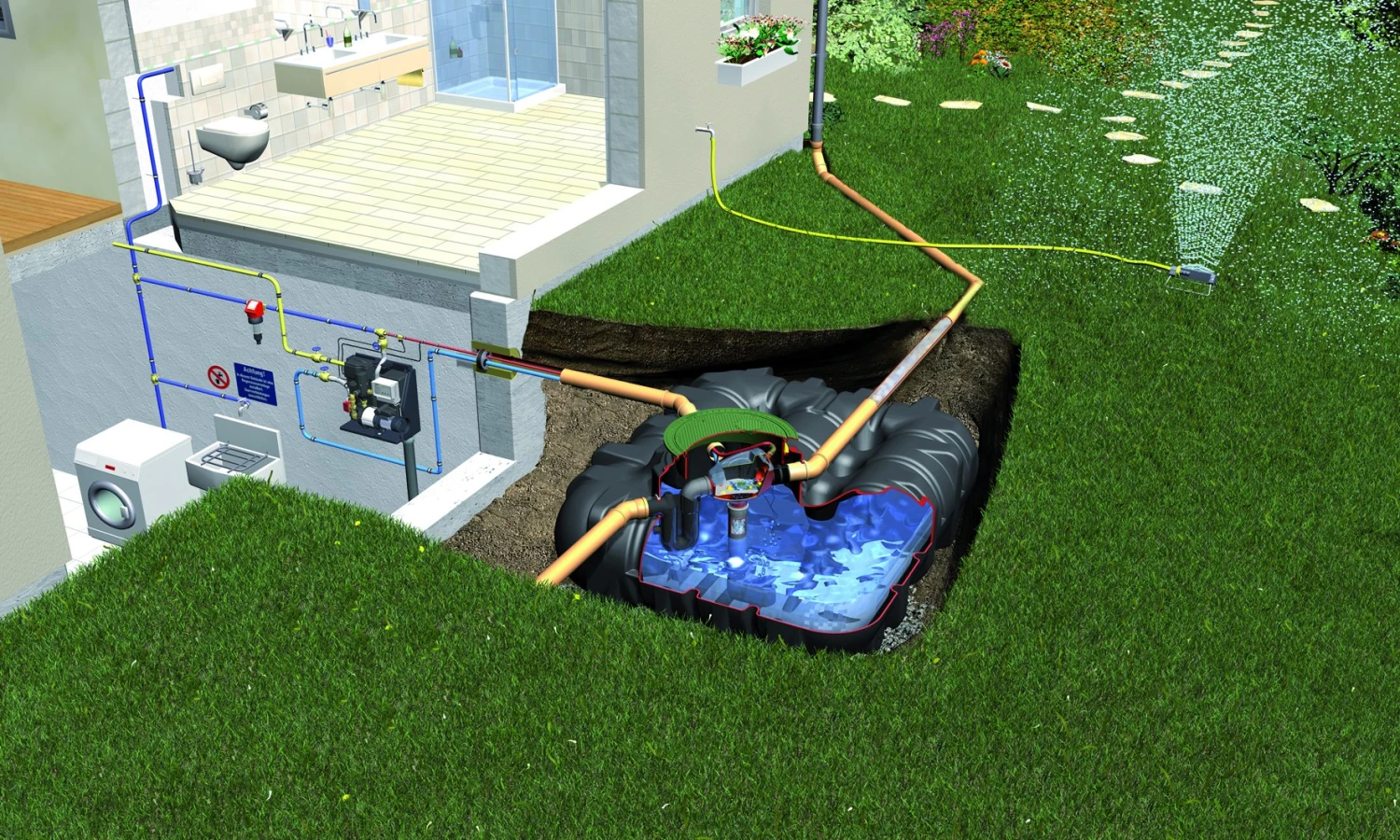

This 15,000 litre Platin House Indirect Rainwater Harvesting system from GRAF is designed to be a reliable domestic solution that utilises the effects of gravity to reduce energy costs. The system is quick and easy to install with a submersible pump that supplies harvested rainwater to a header tank where it is then gravity fed to the toilets and washing machine.

• Simple & quick to install

• Submersible pump supplies harvested rainwater on demand to the header tank where it is then gravity-fed to the WCs & washing machine

• The header tank controls the operation of the system,supplyof harvested rainwater and backup mains water to the WCs

• Dual valve system with in the header tank prioritises rainwater supply over mains water, maximising the use of all available rainwater to save on mains water consumption

• Mains water switchover point is at a lower level in the header tank and becomes operational when rainwater is not available from the underground Platin tan



SCOPE OF SUPPLY:

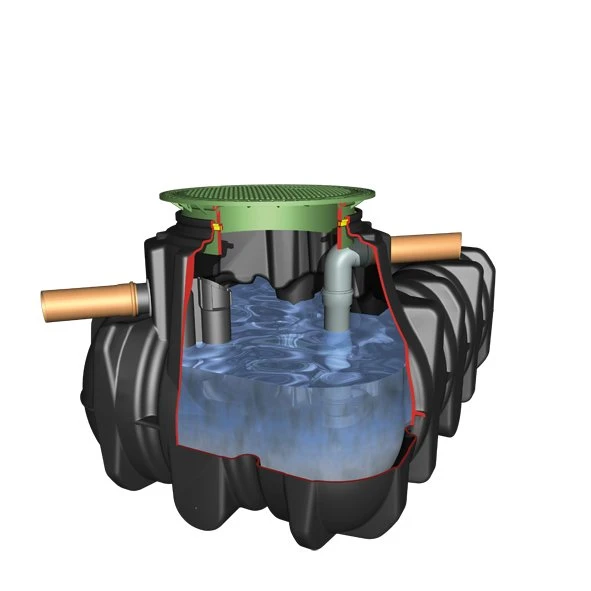

1. Underground tank (choice of tanks available, sizes vary according to property type)
2. Telescopic lid (choice of telescopic lid available, depending on tank location)
3. Minimax filter supplied in accordance with type of tank
4. Submersible pump with floating water intake
5. Float switch (connected from mains water backup unit to the underground tank)
6. Header tank package



Specifications:

Tank Type: Shallow Dig
Capacity: 15,000 litres
Length: 7500mm
Width: 2250mm
Height: 1910mm
Inner Ø dome shaft: 650mm
Tank Weight: 710kg
Dome Shaft Weight: 9kg (pedestrian loading)/55kg (vehicle loading)
Warranty: 15 Years

Please Note: All dimensions are approximate (the manufacturer reserve a tolerance of +/- 3%) and the useful volume of the tanks may be up to 10% lower than the tank capacity, according to the connecting option. All images shown are used for illustration purposes only and may differ from the actual product supplied.
