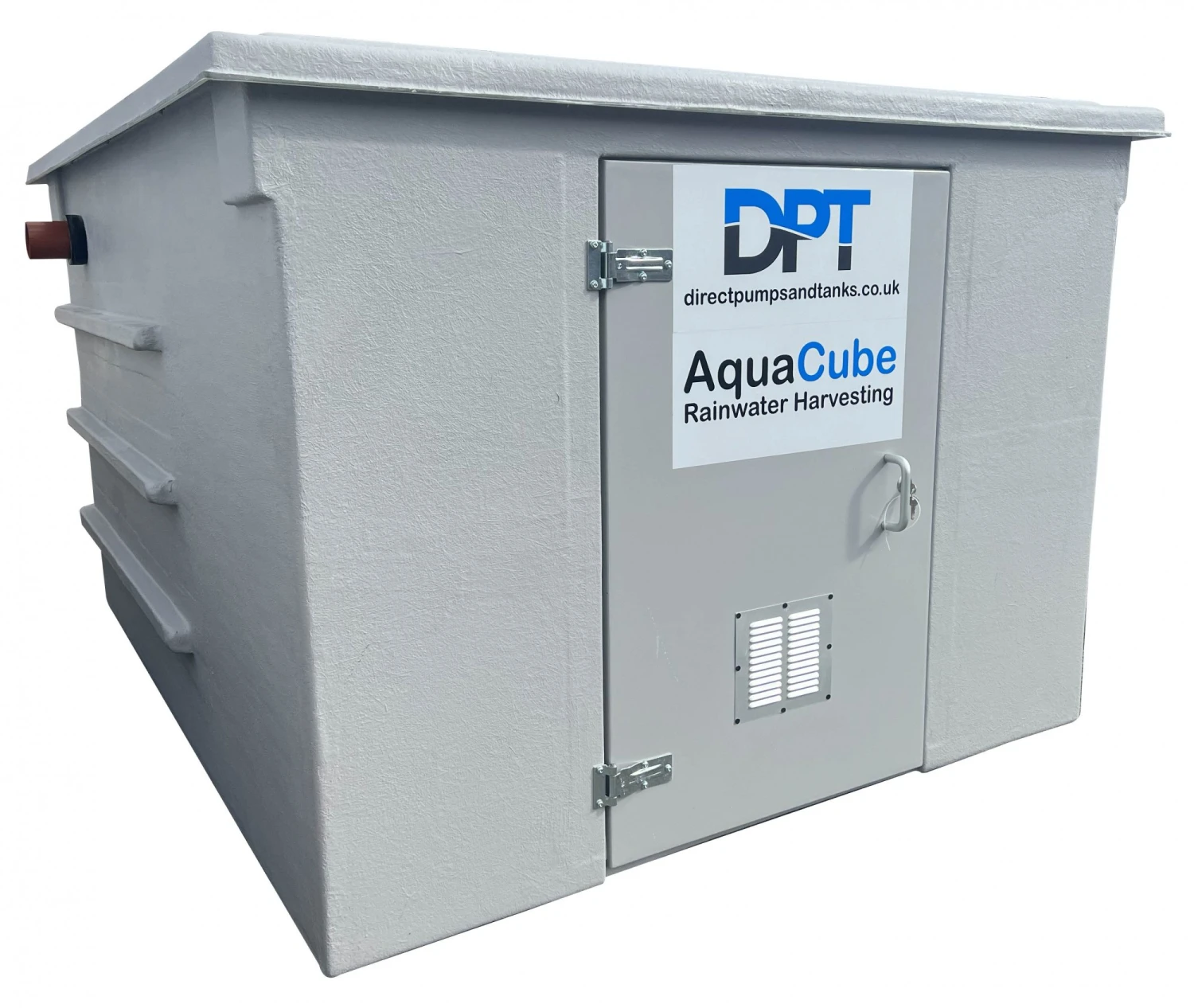

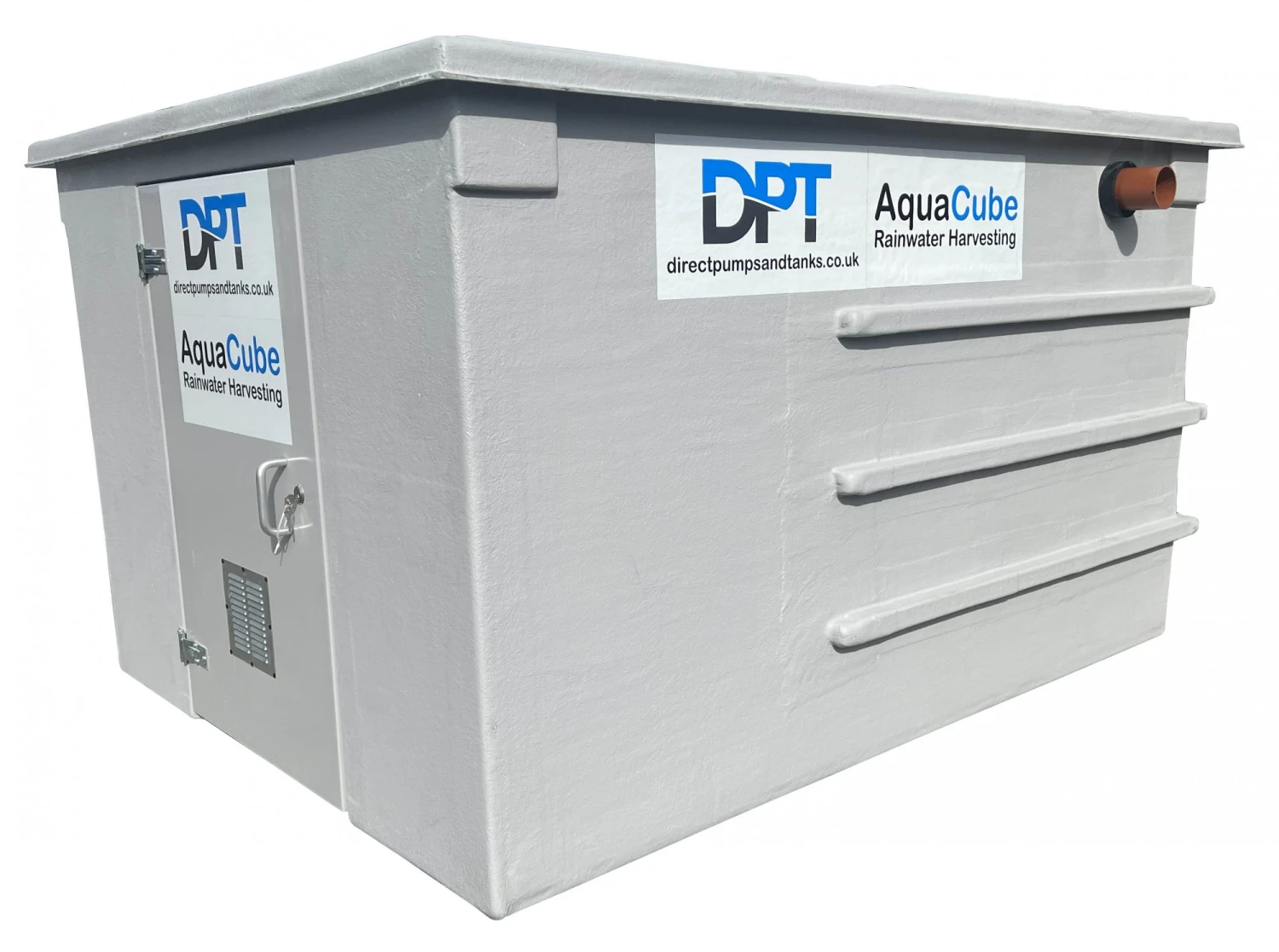

5760 Litre AquaCUBE Rainwater Harvesting System

5760 Litre AquaCUBE Rainwater Harvesting System

Designed to provide a pre-assembled, self-contained rainwater harvesting system, the aquaCUBE can be used across various builds, being new or exsting retrofit sites.

All pumps, filters and controls are included in the one unit, allowing simple and straightforward ‘plug and play’ installation.

Applications

• Toilets and Urinals
• Laundry
• Irrigation
• Vehicle and general cleaning

The AquaCube system has been designed to supply direct, pressurised water to your installed appliances, through the use of a single pump which is mounted away from the stored water container. The AquaCUBE will require the following services:

• Incoming rainwater supply from the roof
• Tank overflow should be fitted to a soak away or storm drain
• Main electricity supply
• Mains water supply for system top-up in low rainflall periods
• Pressurised rainwater from the system booster pump feed
• Control unit emergency warning pipe should be fitted so overflows are visible

Capacity (Litres)	5760
Dimensions (mm)	2702 x 2202 x 1618mm
Weight (kg)	525
Colour	Light Grey
Rainwater Inlet Size	110mm
Rainwater Overflow Size	110mm
Pump Discharge	1”
Power	0.55kW / 3.9A
Voltage	220 – 240v
Pump Type	AquaProf 40/50

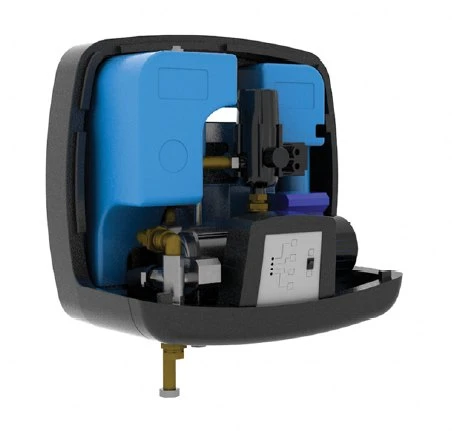

AquaProf Pump

The AquaProf basic 40/50 system is used for rainwater management and distrubtion. It detects any faults in the water collection system, whether from ranwater or the mains and makes automatic corrections to ensure continued operation of the system.

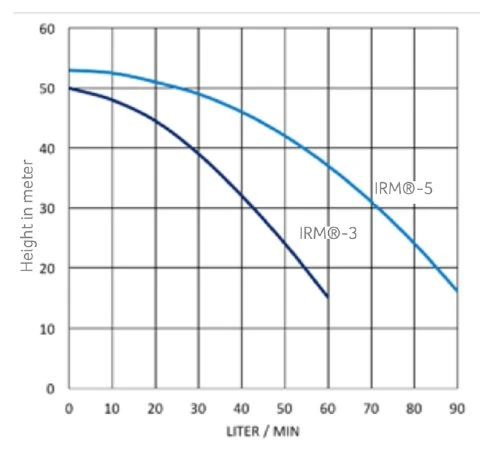

Pump Specifications

• Liquid Temperature range from +5°C to +35°C
• Max.system pressure: Max 6 bar
• Max. Main pressure: Max 4 bar
• Minimum mians flow rate: 10 lpm
• Maximum height of highest use: 12m
• 230v Hz50 power supply
• Maximum power absorbed: W1000
• IP42 Protection rating
• Ambient Temperature: Min 5°C, Max 40°C
• GRP
• 3/4” mains inlet pipe dimensions
• 1” discharge pipe dimensions
• 1” Suction pipe dimensions
• DN 50 over pipe dimensions
• 1000 m Max Altitude
• Max Power pump No.2 relay: 3’A_250volt
• Water type: ph 4-9
• ON/OFF float versions: N/OFF flaot with 20m cable



Delivery

All our Rainwater harvesting tanks are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.

• Product Code: DPT
• Customer Offloading: Customer Offloading
• Delivery: Free Delivery
