500 Litre GRP Water Tank With A Single Pump Booster Set

500 Litre GRP Water Tank – FlyVar Compact Single Booster Set

The FlyVar has been designed as a space saving solution, comprising of a pump(s) in the break tank itself, complete with an independent inverter to regulate pump speed, the system delivers a constant pressure when called for. Running almost silent running the Home Booster set is designed to supply potable water to a single or multiple dwelling where mains pressure is insufficient. The FlyVar Booster comes complete with a variable speed drive(s) and submersible or surface mounted pump(s). The break-tank is insulated to keep the noise level to a minimum. Controls can be mounted on the top of the tank, allowing for easy maintenance.

Standard Features

• GRP insulated water storage tank (WRAS Approved)
• Energy Efficient
• Standby and Duty Assist pumps
• Variable speed stainless steel submersible pump(s)
• Low water level pump protection (as standard)
• Power Protection Device
• Faster to install, less to connect
• Easy maintenance with spilt lit

Applications

• Holiday Homes / Static Caravans
• Off the grid / Rural Properties
• High Rise Apartments / Flats
• Light Industrial use
• Washdown Stations (CAT5)
• Feed to Bib Taps (CAT5)

Please note this tank and pump set are not CAT5, if this is required, please contact us for more information

Tank Specification

Capacity (L)	501
Pump Configuration	Single and Twin
Inlet Size (mm)	25
Length (mm)	1180
Width (mm)	680
Height (mm)	1579



Pump Specification

Model Number	Mid Curve Flow	Mid Curve Pressure	kW Rating	Running Current (amp)	Supply Voltage	Inlet	Outlet	Overflow Size	Dry Weight
FV40/10S	40 l/min	4.5 Bar	0.75	3.8	1ph 230v 50hz	3/4″	1″	40mm	74kg
FV40/15S	40 l/min	6.5 Bar	1.1	5.2	1ph 230v 50hz	3/4″	1″	40mm	76kg
FV80/15S	60 l/min	4.5 Bar	1.1	5.4	1ph 230v 50hz	3/4″	1″	40mm	78kg
FV80/20S	60 l/min	5.8 Bar	1.5	6.1	1ph 230v 50hz	3/4″	1″	40mm	80kg

If access is an issue, please contact us, as we can offer a solution of a 2 piece GRP tank, which allows you to separate the 2 sections and carry them through a doorway or tight corridor for assembly in situ.

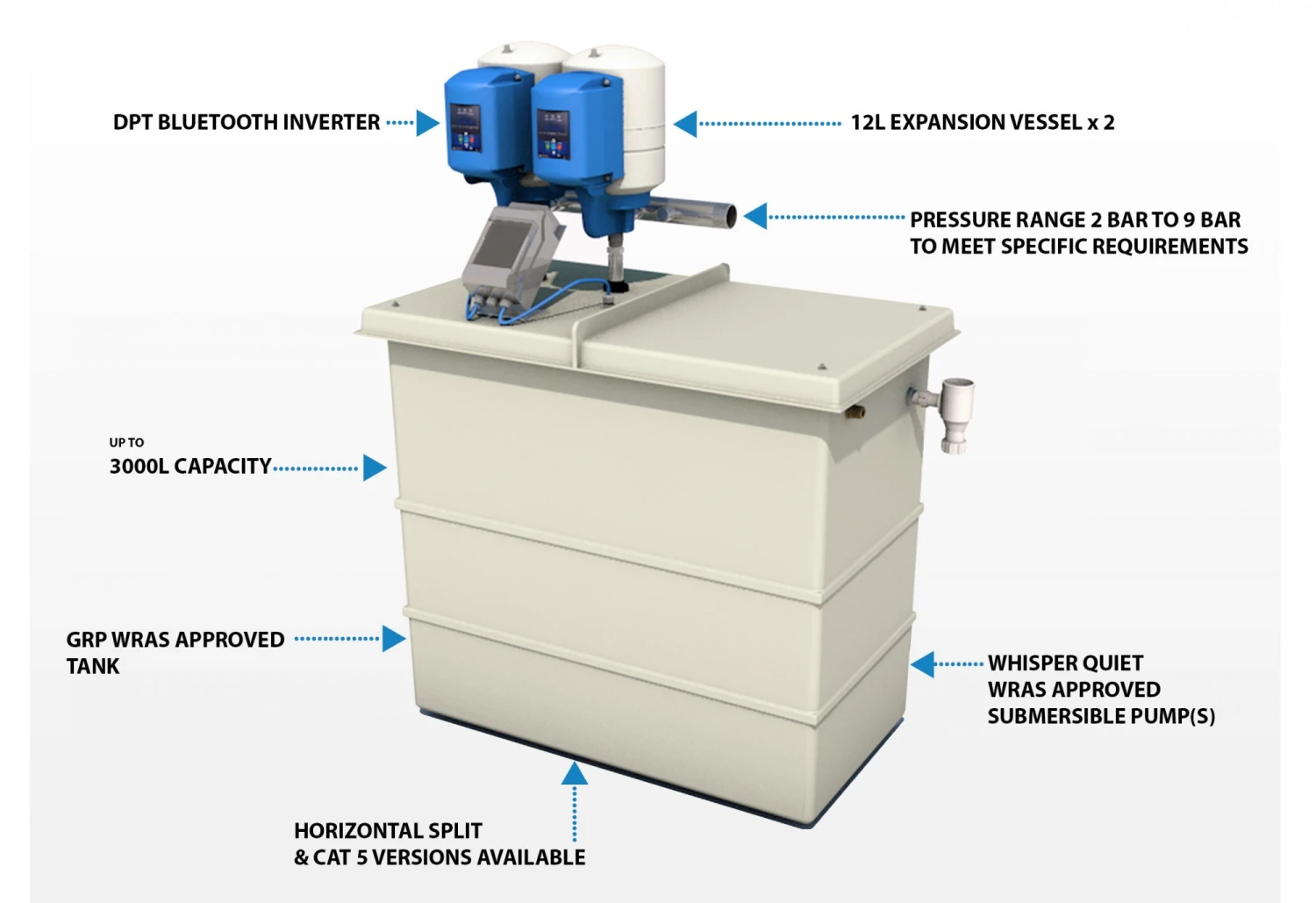

Each pump comes complete with an independent inverter, fixed to the vessel with Bluetooth connectivity to pair the inverts for duty assist functionality. No need for interconnecting wiring, making it easy for installation and testing. This versatile booster set can also pair with multiple FlyVar compacts allowing for even more flow when space for situating the system is at even more of a premium.



Delivery

All our Compact booster sets are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.

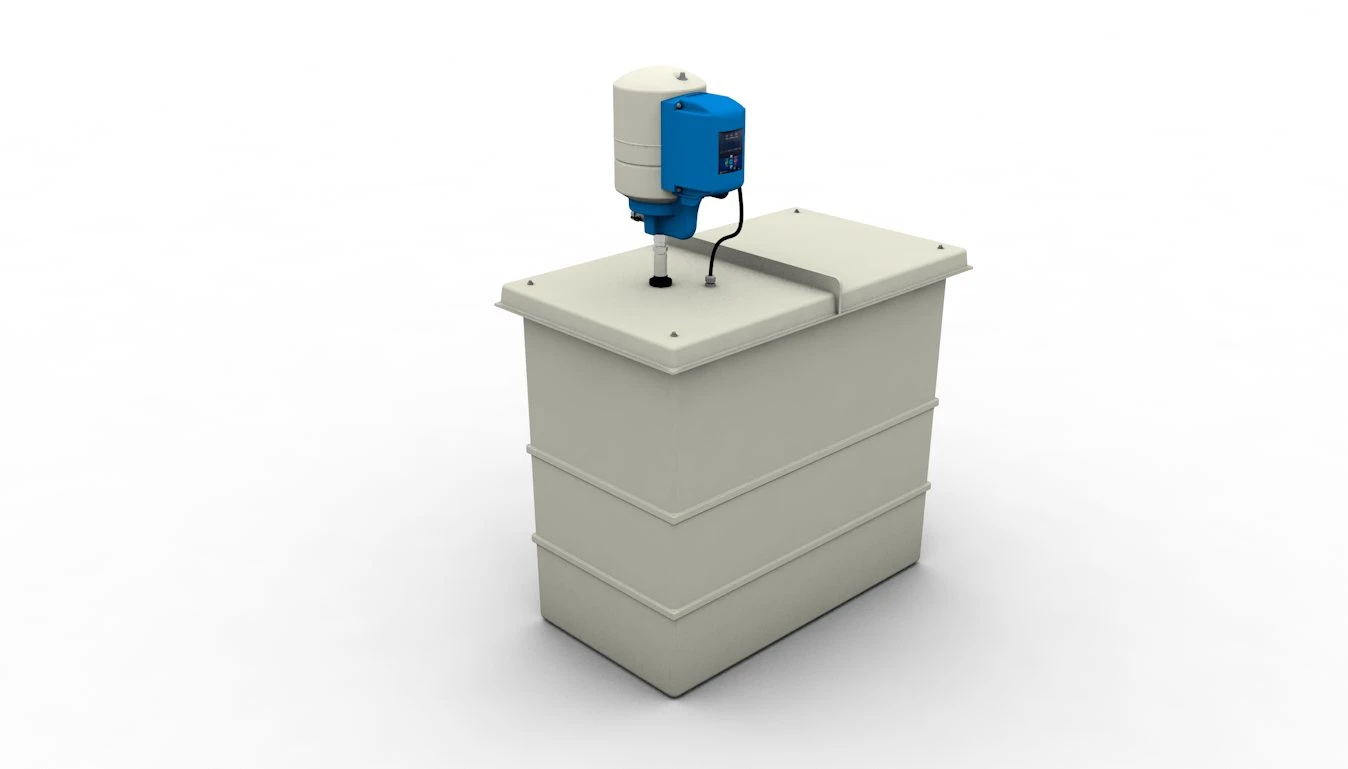

Images are for illustration purposes only, the GRP tank would be Grey and not Blue as advertised

• Product Code: DPT
• Colour: Grey
• Customer Offloading: Customer Offloading
• Delivery: Free Delivery
• Material: GRP
• Potable: Potable
• Shape: Rectangle
• Stock tank: Non Returnable Product
