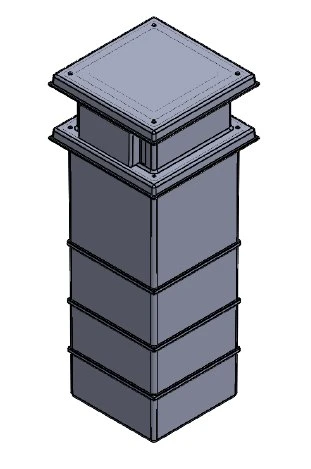

375 Litre Type AB Air GapGRP Water Tank – One Piece Insulated, Cat 5

375 Litre Type AB Air Gap GRP Water Tank – One Piece Insulated, Cat 5 Full WRAS approval

Manufactured to meet BS7491 Parts 1 and 2, using the highest quality GRP materials, ensuring a long service life with minimal maintenance requirements. Grey colour as standard (other RAL or BS colours are available at additional cost)
Only materials of the highest quality are used along with a highly efficient manufacturing processes. This combination ensures that these tanks are of the highest quality available. All internal surfaces, including the lid, have an Isophthalic white gel coat layer which provides a clinical smooth surface which will not support the growth of microbiological organisms. This gel coat layer is reinforced by the main GRP laminate, which provides the main structure of the tank body. The materials used are of the highest quality and applied with exacting production standards to assist in prevention of osmotic blistering.

After the CFC free PU foam insulation is fitted, the GRP outer skin is then applied. This ensures that the insulation is fully encapsulated and protected from external conditions. Where access is a limiting factor and our one piece GRP tanks are unsuitable, a two piece tank could do the trick. These tanks are manufactured in two or more horizontally split sections, which are then assembled once the restriction has passed. In a nutshell, and a one piece tank in two or more bolt together sections. All the components including sealant and fixings for the joint flange are supplied with the tank. The assembly of this range of products could not be easier and should not prove difficult for any competent mechanical services engineer.



Nominal capacity shown

• Nominal capacity = full capacity to top of tank
• Actual capacity = float level

Please note: valves and fittings are supplied loose (items can be fitted to the tank for an additional fee).

The Encapsulated Baseboard will come moulded into the internal base of the tank to become part of the tank’s construction and overall strength of the base. This will benefit the tank if it’s on uneven surfaces or positioned on raised supports. It will not come supplied as a separate item

The tank is supplied with 2 low level connection pads, on the opposite end to the inlet.



PW375-1-AB Specifications

Internal Dimensions (L x W x H)	500 x 500 x 1500 mm
External Dimensions (L x W x H)	690 x 690 x 1889 mm



Optional steel water tank support Stand

• Steel water tank support Stand suitable for raising the tank, allowing pump sets or other equipment to be positioned underneath.
• Allows maximum use of the available footprint.
• Increases the static head for applications where pressurised feed to equipment is advantageous.
• Suitable for One piece tanks.
• Painted Grey Primer finish.
• Manufactured in one piece
• Supplied with ply boarding to provide a flat, solid surface for the tank base
• 600 x 600 x 1050 mm (1000 mm clearance to underside)





Delivery

All our GRP tanks are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.





DOES YOUR WATER TANK NEED A CLEAN?

Water can pose a number of risks if not maintained correctly, with this in mind we can offer the below service for your GRP tanks.


Annual Disinfection Information and Options

• Designed for easy installation, saving time and money
• We can offer monthly, yearly and fixed priced packages ranging from 1-3 years
• All work is carried out by CSCS qualified engineers
• Tank upgrade works available, bringing the old tanks up to current regulations
• Full tank replacement works available
• Legionella risk assessments including schematic drawings if required
• Microbiology analysis – water sampling via UKAS approved laboratories
• Building flush and mains injection
• Commissioning of booster sets
• Servicing of water softeners and booster sets
• Replacement of hollow roof struts.
• Insulating of existing cold water storage tanks

For more information regarding the annual disinfection, please click here

• Product Code: PW
• Customer Offloading: Customer Offloading
• Material: GRP
• Potable: Potable
• Shape: Square
• Stock tank: Made to Order, Non Returnable Product
• Tank Use: Above Ground
• WRAS: Yes
