10,000 Litre Rainbox Combi System

10,000 Litre Rainbox Combi Rainwater Harvesting System

What is Rainwater Harvesting?

Rainwater is collected from your roof area; it is then passed through a filter system which removes any large pieces of debris, leaves, etc. and then into the underground storage tank via a calmed inlet which is designed to stop the disturbance of any sediment in the bottom of the tank. Excess rainwater will pass through a siphoned overflow fitted to the tank to be connected to the storm drain or soak away.

Why Harvest Rainwater?

• Rising utility bills, reduction of running costs and environmental implications are just three reasons for investing in a rainwater harvesting system. Up to 80% of commercial main water can be replaced by rainwater harvesting
• Rainwater harvesting is a key component to reach compliance within the code for sustainable homes to reduce overall water consumption.
• Additionally, rainwater re-use scores highly with the Water Efficiency sector of the BREEAM accreditation scheme and can help gain planning permission by meeting site drainage requirements (ref. Building Regulations Part H) as part of a sustainable drainage (SUDS) scheme.



What’s included in the system?

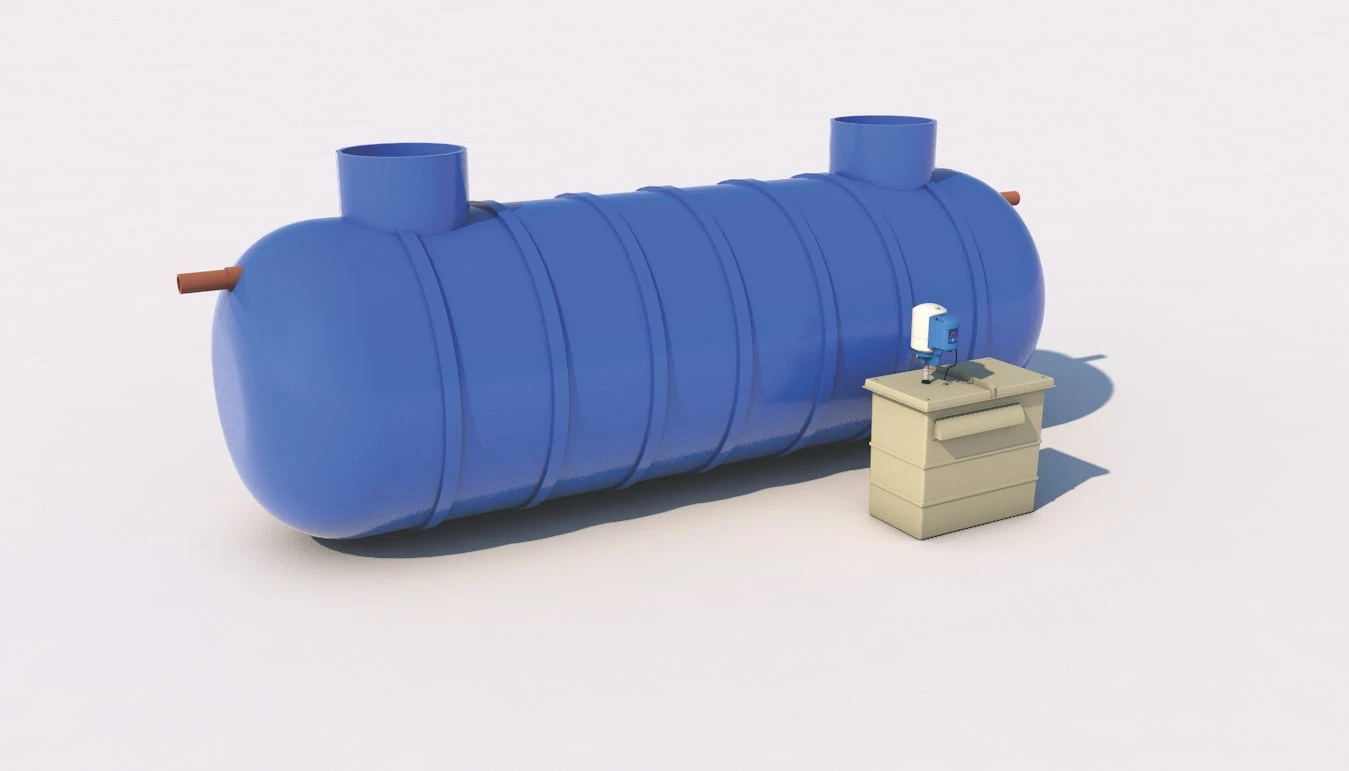

• Underground Storage Tank 10000L
• Internal Filter System max roof area 2000m2
• 2 x Pedestrian rated covers 1 x 600×600 1 x 750×750
• Submersible water pump with built-in pressure switch and dry run protection
• 500L GRP Header Tank c/w AB air gap and 2 inlet valves



How does the Rainbox Combi Work?

Not only is the Rainbox Combi environmentally friendly, it has the added benefit of lowering utility costs for the end user by replacing up to 80% of commercially available mains supplied water with collected rain water.

The collected Rainwater is pumped or gravity fed to a low level break tank. In turn, the water is then gravity fed to an integral or external booster pump system for onward distribution to the serviced appliances.

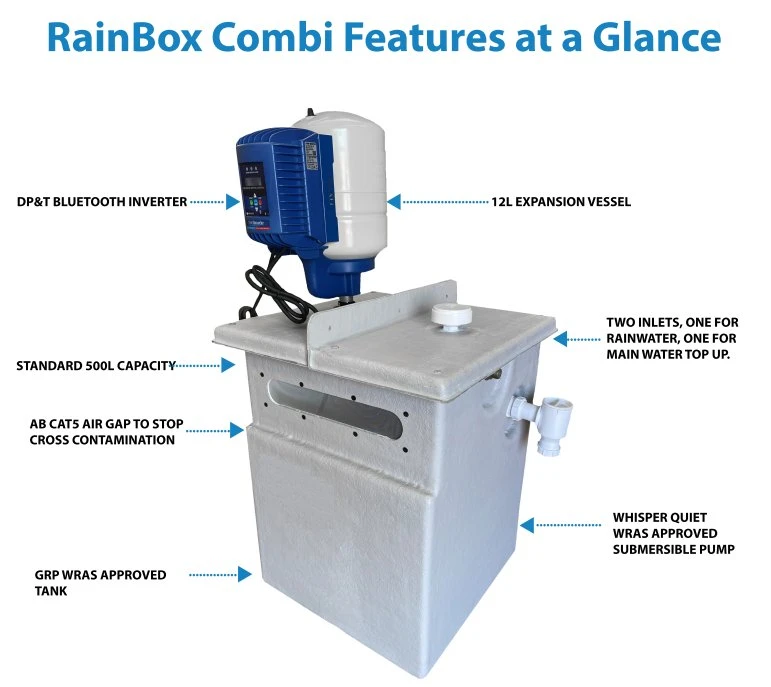

Features

• Bluetooth Inverter
• 12L Expansion Vessel
• AB CAT5 Air gap to stop cross contamination
• Whisper Quite, WRAS approved submersible pump
• 500 mm Invert depth



Please note all RWH tanks have 2 access turrets 600mmx 500mmhigh



Delivery

All our Rainwater harvesting tanks are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.

• Product Code: DPT
• Customer Offloading: Customer Offloading
• Delivery: Free Delivery
• Diameter: 1200mm
• Potable: Non Potable
• Tank Use: Below Ground
